Overview

zzh PCBA

zig-a-zig-ah! (zzh, for short) is a tiny "USB stick" form-factor development board for multiprotocol RF tinkering.

It features:

  • TI CC2652R 2.4 GHz multi-protocol wireless microcontroller targeting Thread, Zigbee, Bluetooth 5 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN) and proprietary systems
  • Communicates with the host computer via the common CH340 USB-UART bridge, no manual driver installation needed in most cases (Windows, Linux, FreeBSD, OpenBSD, and macOS), no driver support for illumos
  • Self-programming via the TI CC-series serial bootloader. As long as it is not explicitly disabled in code, no external programmer needed! Pushbutton on the default pin to trigger this mode
  • cJTAG debug header, in case you disable BSL by accident or want a proper debug interface
  • SMA antenna port for an external antenna of your choice
  • General purpose LED

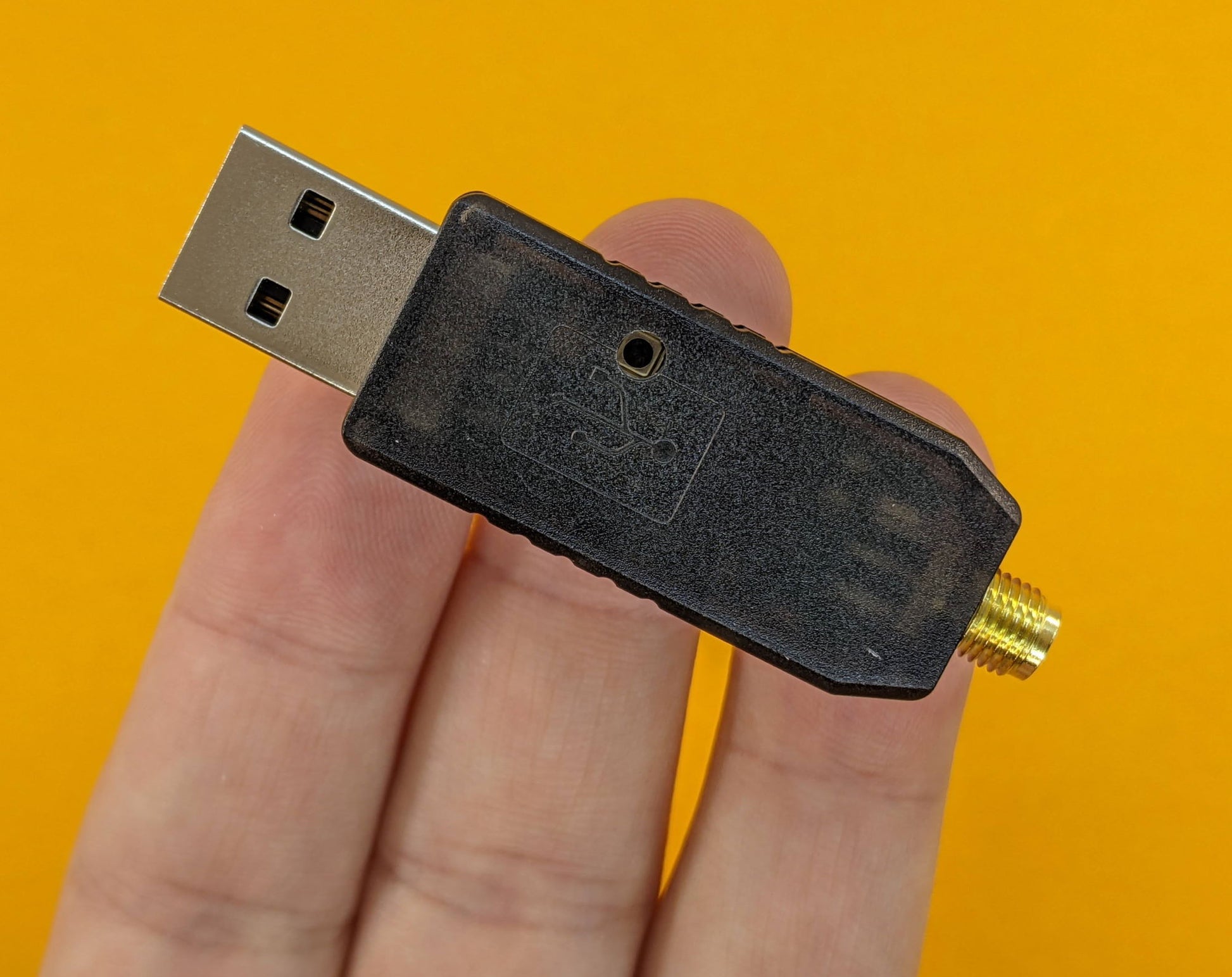

It is designed to fit in a tiny Gōng mó "USB Shell" and looks a bit like this when paired with your favourite SBC:

zzh plugged in to Raspberry Pi

Think of it as an upgrade to the ubiquitous CC2531 USB Sticks commonly used for Zigbee tinkering. CC2652 has a much beefier processor, more memory and a sane free compiler that should enable easier development compared to the old 8051 based CC2530/1 devices.

Flavours

There are two versions of zzh:

  • zzh (CC2652R) Revision A is released and a batch of boards have been produced. See below for puchasing details.
  • zzh-p is the experimental version with CC2652P (built-in PA). Shares most of the same design with zzh except for the RF parts and will fit in a slightly larger case. It is a work in progress, sign up to the Electrolama mailing list to be notified of project updates and when kits/assembled units go on sale. A sneak peek:

zzh-p preview

Click here for a summary of different chips mentioned, if you are confused about all these part numbers.

Purchase

Assembled versions of zzh will be available on the Electrolama Tindie Store very soon. Orders ship from London, UK.

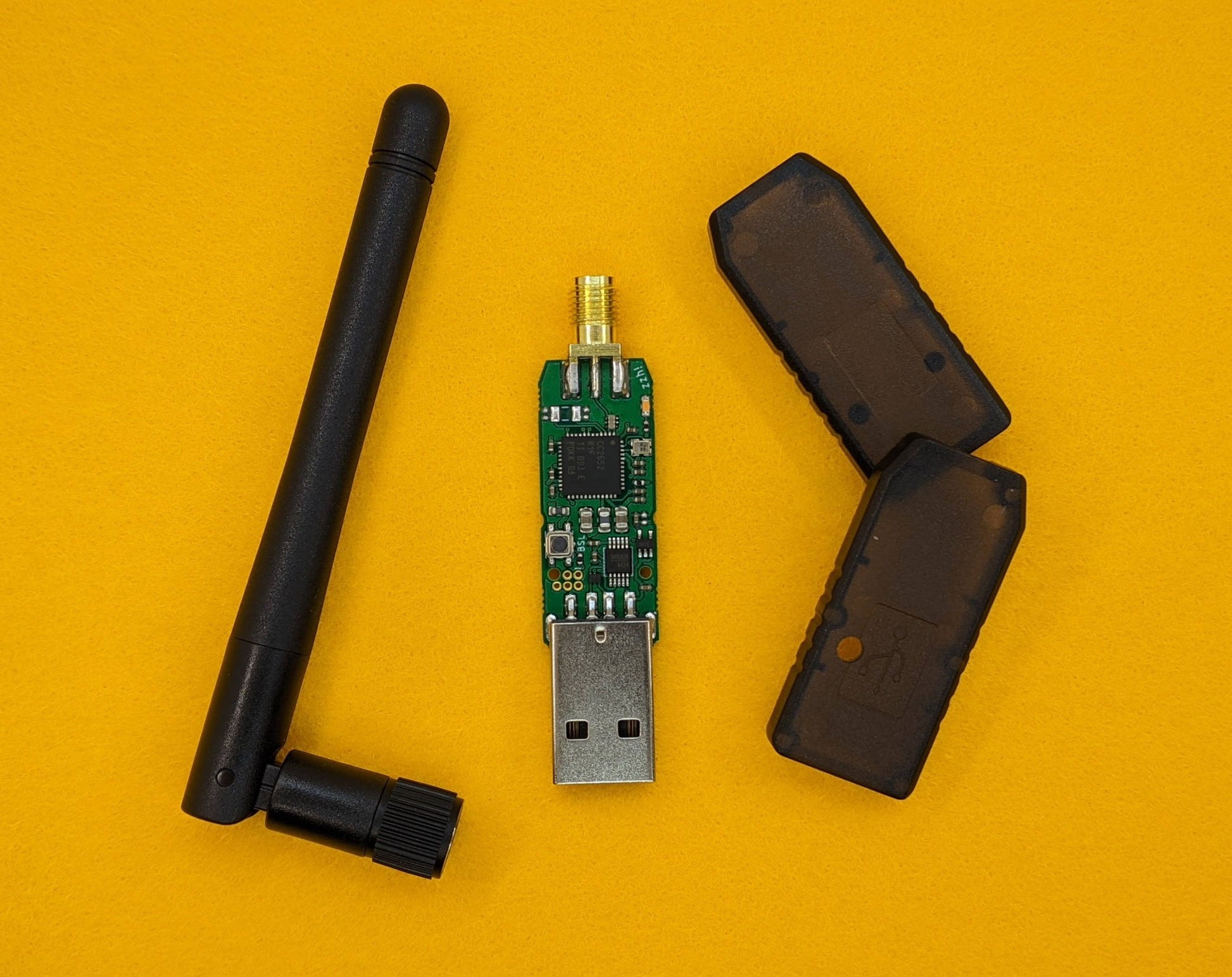

Each zzh order contains a fully assembled and tested PCBA along with a plastic enclosure and a small antenna:

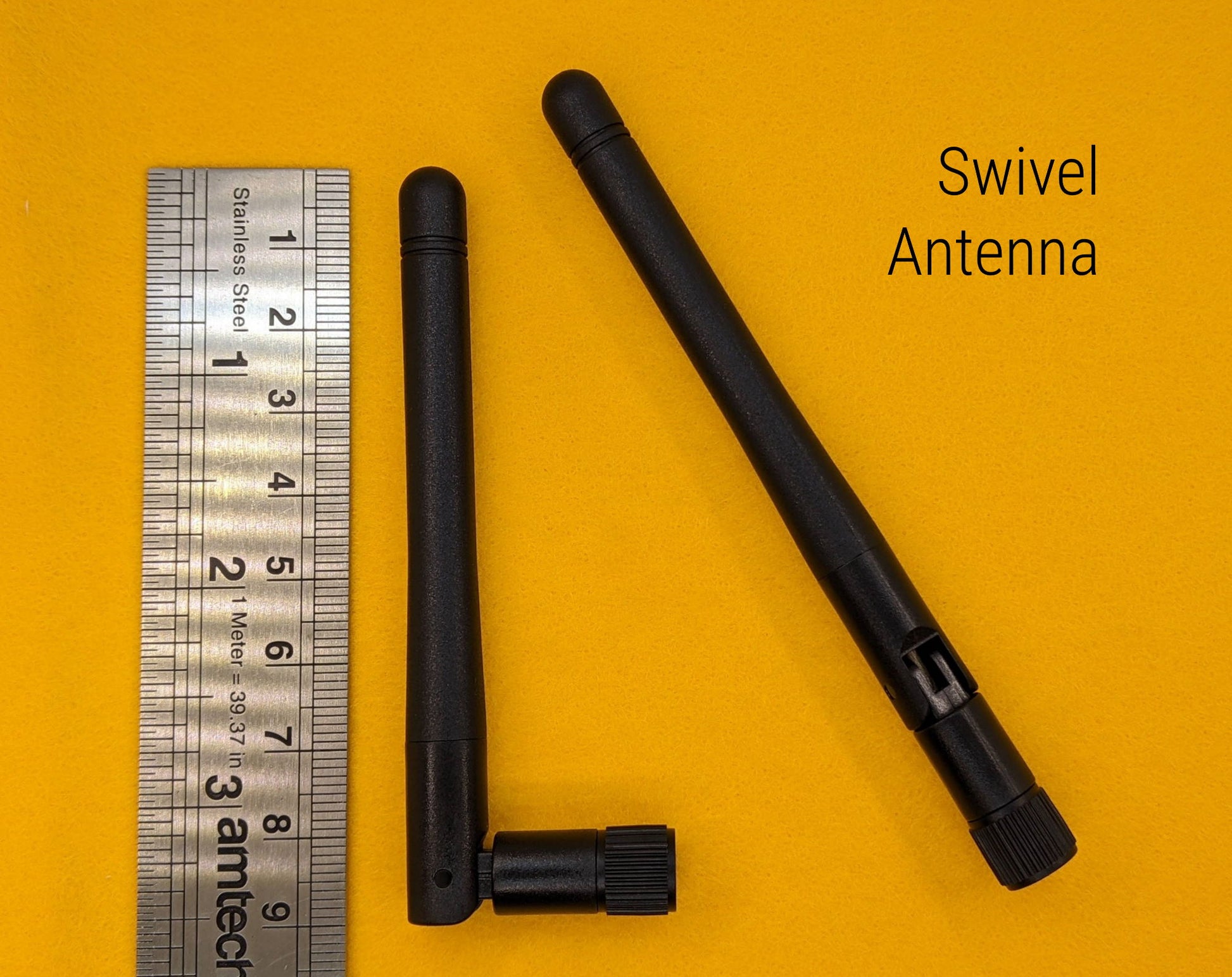

zzh case and antenna

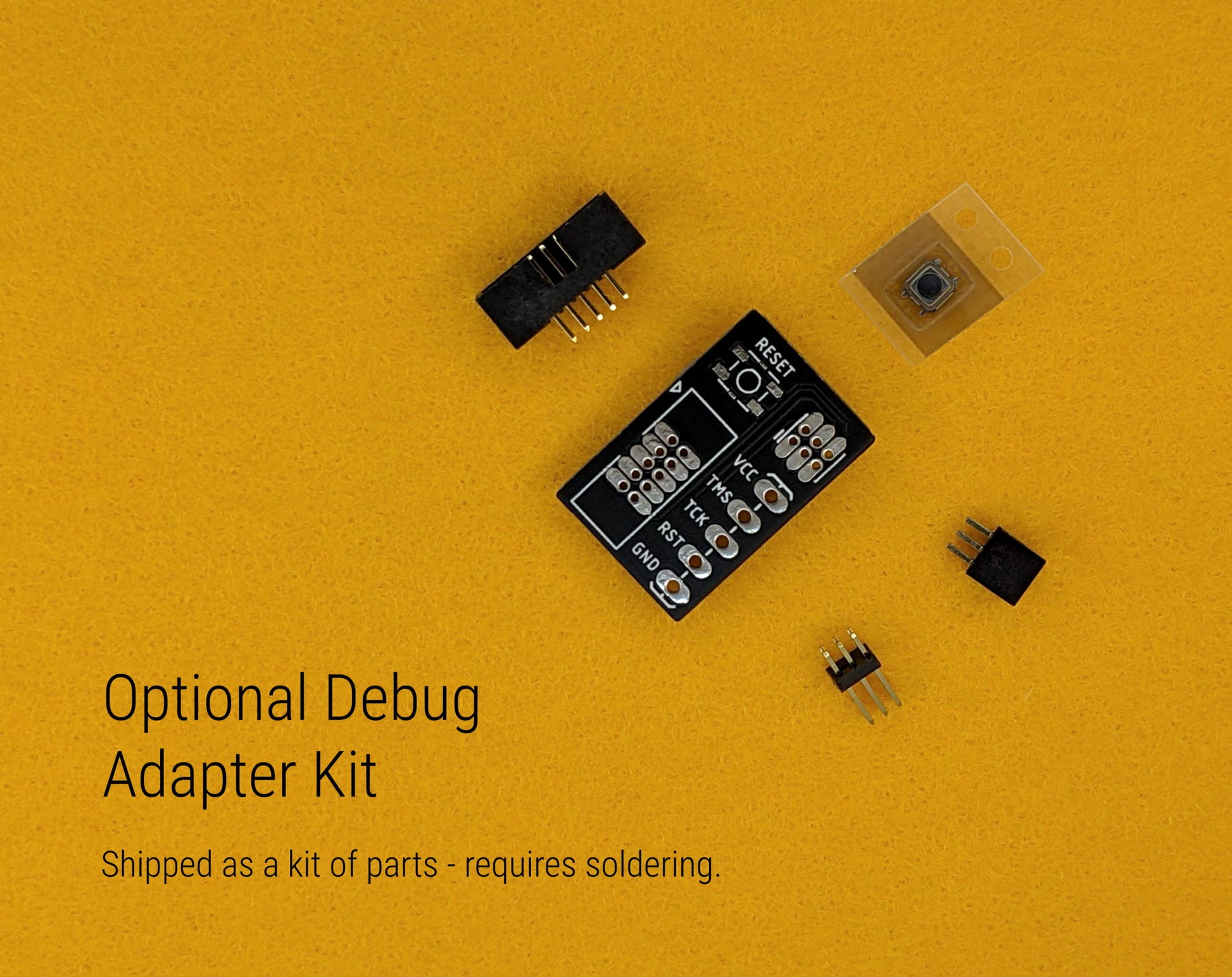

An optional debug adapter kit of parts (requires assembly) can also be purchased:

zzh debug adapter kit

A portion of each sale will be donated to @Koenkk to support his work on Zigbee2mqtt and the public firmware images used by zzh and many other projects.

User Manual

Important Note

Please keep in mind that zzh is a general purpose development board and as such, it is shipped "blank" with no code on the wireless microcontroller. You will need to program it before it does anything meaningful. Given the application dependent nature of this board, limited after-sales support can be provided for Tindie purchases (For example: we can help you program this board but can't fix your Zigbee network range issues or offer specific software support).

Drivers for CH340

The USB-Serial functionality is handled all externally by CH340 and as far as CC2652 is concerned, communication happens over straight UART. First step in getting set up with zzh is to ensure that the host computer has the right drivers for the CH340 installed.

Plug your device in (don't worry about the firmware just yet) and ensure that zzh is recognised by your operating system before proceeding to the flashing steps.

Linux

Issue dmesg and observe the device enumeration:

[152343.203201] usb 1-1.4: new full-speed USB device number 5 using dwc_otg
[152343.336384] usb 1-1.4: New USB device found, idVendor=1a86, idProduct=7523, bcdDevice= 2.62
[152343.336400] usb 1-1.4: New USB device strings: Mfr=0, Product=2, SerialNumber=0
[152343.336409] usb 1-1.4: Product: USB2.0-Serial
[152343.338315] ch341 1-1.4:1.0: ch341-uart converter detected
[152343.341440] usb 1-1.4: ch341-uart converter now attached to ttyUSB0

CH340 drivers have been in the kernel for a while and as long as you are using a relatively new version (driver changelog), you shouldn't have any issues.

Windows

The drivers for CH340 should be automatically be picked up and you should see your device under "Ports (COM & LPT)" in Device Manager:

serial port windows

If you need to install the drivers manually, head over here for the official drivers.

macOS

Issue dmesg and observe the device enumeration:

IOUserSerial::AppleUSBCHCOM::<private>: 127 0x6000013e4058
IOUserSerial::<private>: 456 0x6000013e4058
IOUserSerial::<private>: 41 0x6000013e4058
DK: AppleUSBCHCOM-0x1000030ea::start(IOUSBHostInterface-0x1000030e5) ok

Flashing using BSL

One of the nice things about these new chips from TI is the inclusion of a serial bootloader in the ROM. Enabled by default and available unless explicitly modified by the application (see CCFG:BL_CONFIG), you can flash code without needing an external programmer. In fact, if the device is empty (either fresh from the factory or after an erase cycle), it automatically enters the bootloader mode.

A summary of when the bootloader is invoked can be seen in this flowchart below:

bsl flowchart

("CC2538/CC26x0/CC26x2 Serial Bootloader Interface", Figure 1)

The default "backdoor enable" pin on CC2652R is DIO_13 (not DIO_11 as noted in SWRA466C!) and zzh has a small pushbutton on this pin to make tinkering with it easier.

To trigger the ROM bootloader, follow these steps:

  • Unplug zzh from the host
  • Press the BSL button on the board and keep holding while plugging the device back into the host:

zzh BSL pushbutton

  • Give it a few seconds for the device to settle and set up and release the BSL button
  • zzh should now be in ROM bootloader mode

TI CC13xx/CC2538/CC26xx Serial Boot Loader (cc2538-bsl for short) is a Python script that can be used to flash the board and should work fine on pretty much any OS.

Linux

To run cc2538-bsl.py you need to have python and pip installed on your system. If you don't have them installed, refer to your distribution package manager to get it set up. (On Debian/Ubuntu, sudo apt update && sudo apt-get install python3-pip should work. sudo pip ... is not the optimal way of installing packages but Python package management is out of scope for this document.)

Download and extract cc2538-bsl
wget -O cc2538-bsl.zip https://codeload.github.com/JelmerT/cc2538-bsl/zip/master && unzip cc2538-bsl.zip
Install required dependencies
sudo pip3 install pyserial intelhex
Flash firmware

At this point you are going to need a firmware file to flash to your device. As a test, you can grab this small program (blink.bin) that toggles the LED connected to DIO_7.

To flash blink.bin, run:

$ ./cc2538-bsl.py -p /dev/ttyUSB0 -evw blink.bin

Don't forget to change /dev/ttyUSB0 to the port used on your machine!

This shouldn't take long and if successful, you will see blinkenlights!

If you want to re-flash zzh with new firmware, put it in bootloader mode and follow the flashing instructions. This will work as long as BSL is not disabled by the firmware you burn to these devices.

Erase flash

To completely erase the device flash, run:

$ ./cc2538-bsl.py -p /dev/ttyUSB0 -e

Windows

To run cc2538-bsl.py you need to have Python installed on your system. Download Python for Windows and install. After installation verify Python is correctly installed by running python -V in Command Prompt. It should return Python and the version number.

If you receive a message similiar to: Python is not recognized as an internal or external command, operable program or batch file. means Python is either not installed or the system variable path hasn’t been set. You’ll need to launch Python from the folder in which it is installed or adjust your system variables to allow it to be launched from any location.

Install required dependencies

Open Command Prompt and check if pip is installed by running pip -V which will show its version and install location.

From the same Command Prompt run:

pip3 install pyserial intelhex
Download and extract cc2538-bsl

Download the zipped code and extract to a folder.

Flash firmware

At this point you are going to need a firmware file to flash to your device. As a test, you can grab this small program (blink.bin) that toggles the LED connected to DIO_7. It is recommended to download it to the same folder cc2538-bsl is extracted to.

To flash blink.bin, navigate to the folder where you extracted cc2538-bsl and open a Command Prompt there

cc2538-bsl.py -p COM14 -evw blink.bin

Don't forget to change COM14 to the port used on your machine!

This shouldn't take long and if successful, you will see blinkenlights!

If you want to re-flash zzh with new firmware, put it in bootloader mode and follow the flashing instructions. This will work as long as BSL is not disabled by the firmware you burn to these devices.

Erase flash

To completely erase the device flash, run:

cc2538-bsl.py -p COM14 -e

Example of a successful flash of Z-Stack coordinator firmware under Windows: zzh flash complete

macOS

To run cc2538-bsl.py you need to install some extra python dependancies, python3 should already be shipped with macOS (Catalina).

Download and extract cc2538-bsl
wget -O cc2538-bsl.zip https://codeload.github.com/JelmerT/cc2538-bsl/zip/master && unzip cc2538-bsl.zip
Install required dependencies

As we cannot write to the system's location we need to install the dependancies with in the user location. The downside is this has to be installed for every user that will use cc2538-dsl.

$ /usr/bin/python3 -m pip install --user pyserial intelhex
Flash firmware

At this point you are going to need a firmware file to flash to your device. As a test, you can grab this small program (blink.bin) that toggles the LED connected to DIO_7.

To flash blink.bin, run:

$ ls -l /dev/tty.usbserial-*
$ ./cc2538-bsl.py -p /dev/tty.usbserial-2212420 -evw blink.bin

Don't forget to change /dev/tty.usbserial-2212420 to the port used on your machine!

This shouldn't take long and if successful, you will see blinkenlights!

If you want to re-flash zzh with new firmware, put it in bootloader mode and follow the flashing instructions. This will work as long as BSL is not disabled by the firmware you burn to these devices.

Erase flash

To completely erase the device flash, run:

$ ./cc2538-bsl.py -p /dev/tty.usbserial-2212420 -e

Flashing using external debugger

Please Note: For general purpose usage, you will not need an external debugger and BSL method discussed above will be enough for your flashing needs. If you are a firmware developer needing proper debugging facilities and/or want to get access to the RF tools in TI SmartRF Studio, follow along.

Due to space constraints, the debug header on zzh is (sadly) non-standard.

Pinout for the zzh debug header

zzh debug header pinout

zzh Debug Adapter

To convert the zzh 5-pin debug header to a standard 10-pin Cortex Debug Connector, a small adapter PCB is needed (unless you hack and solder an IDC cable to the board directly). Design files for this adapter can be found in the repo.

With this adapter board plugged in to zzh, you can connect any debugger you wish to get access to the cJTAG port. This little adapter board kit (some soldering required) is available as an optional add-on to zzh on Electrolama Tindie Store.

The cheapest option for an officially supported debugger is the CC-DEVPACK-DEBUG, available from most common electronics distributors.

The Debug Sandwich

(The Debug Sandwich: CC-DEVPACK-DEBUG on top of the zzh-debug-adapter on top of zzh.)

Here'a handy pinout reference for CC-DEVPACK-DEBUG:

CC-DEVPACK-DEBUG Pinout

Zigbee2mqtt

Zigbee2mqtt has support for CC2652R chip used on this board. Download the Z-Stack coordinator firmware from @Koenkk's firmware repository.

As of writing, the latest firmware available is: CC26X2R1_20200417.zip. Download and extract this and follow the "Flashing using BSL" instructions to burn this on your zzh.

Configuration

Make sure that the CH340 USB-serial bridge drivers are installed and your device is recognised (instructions here).

With the correct serial port in use identified, edit your Zigbee2mqtt configuration.yaml:

serial:
  port: /dev/ttyUSB0  (change this if it is different on your machine)
advanced:
  rtscts: false

The rtscts: false directive does not appear in the default configuration file but is crucial for the operation of zzh so please don't ignore that. Also note that it sits in the advanced: config group and not in serial:.

Troubleshooting

"Error: Failed to connect to the adapter (Error: SRSP - SYS - ping after 6000ms)"

This is a general error if there are communication problems with the adapter used.

A checklist to go through if you get this error message:

  • Try replugging zzh once or twice.
  • Make sure you have the correct serial port and rtscts: false option set in your configuration.yaml
  • Make sure you have the correct firmware burned on your adapter. Remember, zzh boards ship blank so you will need to burn the appropriate firmware before using it with any application.
  • Are you using any virtualisation/container pass-through for the USB device? There have been reports of these potentially causing problems so for debugging purposes try communicating with the adapter directly from the host OS it is connected to (i.e: see if it works without the bypass)
  • Make sure you are using an up-to-date version of Zigbee2mqtt on the host and firmware on the adapter.

Zigbee Home Automation for Home Assistant

Zigbee Home Automation or ZHA is an integration for Home Assistant. It uses the same Z-Stack coordinator firmware as Zigbee2mqtt and connects zzh directly with Home Assistant.
Support for TI chips (especially CC2562) is still in development stage!

Configuration

Make sure zzh is recognised and available to your Home Assistant instance. Navigate to Configuration -> Integrations, click on the + icon, find Zigbee Home Automation and click on it.

ZHA Integration

Choose the device path of zzh and wait for installation to complete. navigate to the ZHA integration at the bottom of the Configuration page. You will now have "Texas Instruments ZNP Coordinator" as the first device in ZHA.

ZHA Coordinator

In case the autodetection fails, a manual setup menu will be displayed. Check the device path and set Radio Type as ti_cc. Leave other options as they are.

If ZHA is unable to connect to zzh try replugging zzh or change to another USB port.

Aside: TI Part Numbers

TI has quite a few different chips and they are all used/mentioned in open-source Zigbee world which can be daunting if you are just starting out. Here's a quick summary of part numbers and key features, starting with the older generation:

  • CC2530: 2.4GHz Zigbee and IEEE 802.15.4 wireless MCU. 8051 core, has very little RAM. Needs expensive compiler license for official TI stack.
  • CC2531: CC2530 with built-in USB. Used in the cheap "Zigbee sticks" sold everywhere.

The newer generation:

  • CC2652R: 2.4GHz only multi-protocol (Zigbee, Bluetooth, Thread, ...) wireless MCU. Cortex-M0 core for radio stack and Cortex-M4F core for application use, plenty of RAM. Free compiler option from TI. zzh uses this chip.
  • CC2652RB: Pin compatible "Crystal-less" CC2652R (so you could use it if you were to build your own zzh and omit the crystal) but not firmware compatible.
  • CC2652P: CC2652R with a built-in RF PA. Not pin or firmware compatible with CC2652R/CC2652RB. zzh-p will use this.

Multi frequency chips:

  • CC1352R: Sub 1 GHz & 2.4 GHz wireless MCU. Essentially CC2652R with an extra sub-1GHz radio.
  • CC1352P: CC1352R with a built in RF PA.

Auxiliary chips:

  • CC2591 and CC2592: 2.4 GHz range extenders. These are not wireless MCUs, just auxillary RF PA and LNA in the same package.

Downloads

Changelog

In the repo, click here.

License

zig-a-zig-ah! is designed by Electrolama / Omer Kilic and licensed under the Solderpad Hardware License 2.0.

Regulatory Notice

This kit is designed to allow Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and Software developers to write software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all required FCC (or any other local authority) equipment authorizations are first obtained. Operation is subject to the condition that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.

ACKs

Thanks to:

  • @GeorgeIoak and @matthewvenn for design review and comments during early prototyping
  • Fredrik K for his domain expertise, design review and (much appreciated!) RF help
  • @KoenKK for his work on the great Zigbee2mqtt project and testing prototypes
  • @egelmex for testing prototypes, improving docs and being an all around cool dude

Name credit goes to @9600, this had a much boring name before he suggested zig-a-zig-ah!
