zzh Multiprotocol RF Stick (CC2652R1 - External Antenna)
zzh Multiprotocol RF Stick (CC2652R1 - External Antenna)
⚠️ Please be advised we are seeing major delays with Royal Mail packages due to ongoing strike action. Orders placed now may not arrive before Xmas. To arrange courier shipping, please contact us at support@electrolama.com

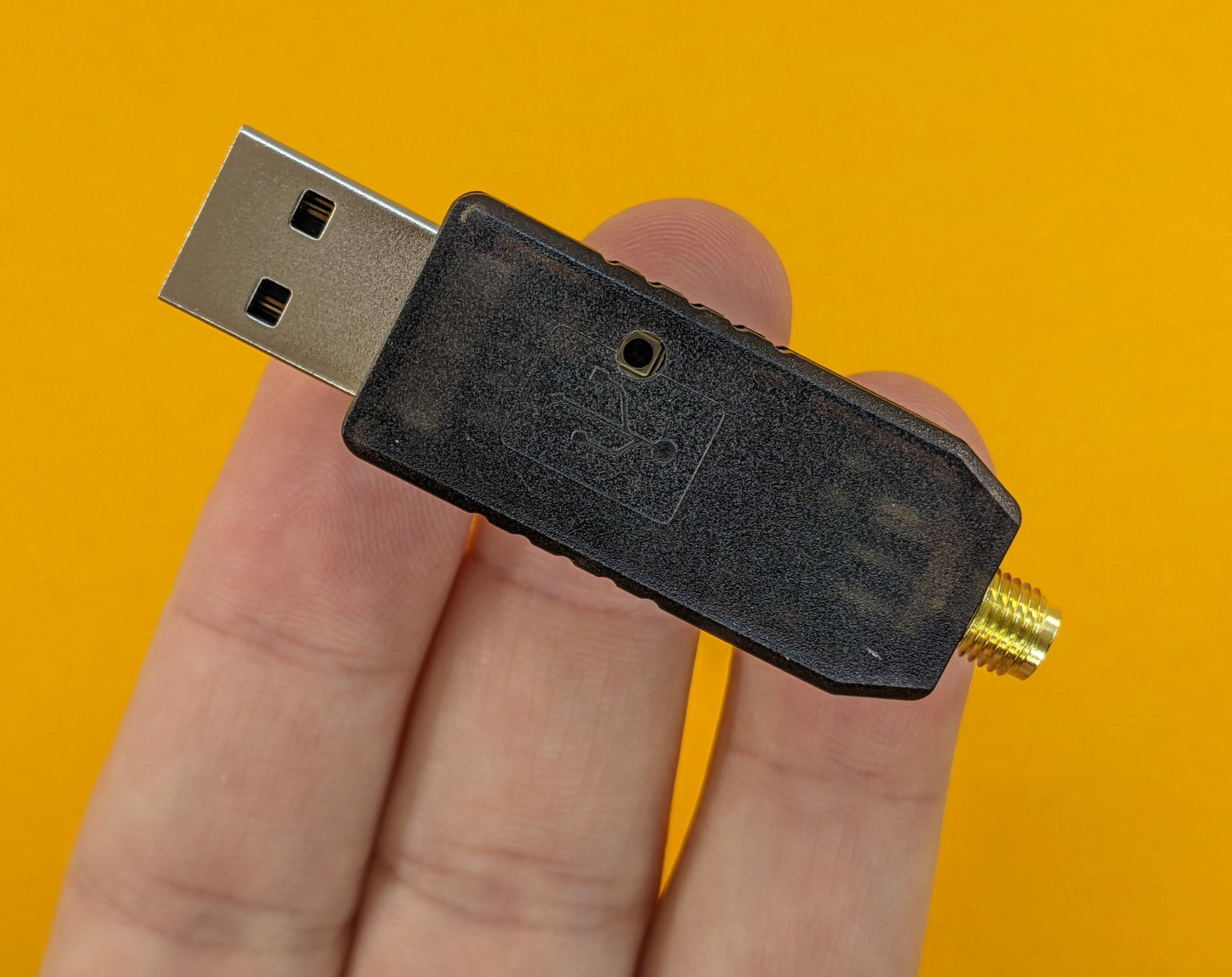

zzh is the original "USB stick" form-factor development board for TI's new generation CC2652R chips.
It features:
- TI CC2652R1 2.4 GHz multi-protocol wireless microcontroller targeting Thread, Zigbee, Bluetooth 5 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN) and proprietary systems
- Communicates with the host computer via the common CH340 USB-UART bridge, no manual driver installation needed in most cases (Windows and Linux)
- Self-programming via the TI CC-series serial bootloader. As long as it is not explicitly disabled in code, no external programmer needed! Pushbutton on the default pin to trigger this mode
- cJTAG debug header, in case you disable BSL by accident or want a proper debug interface

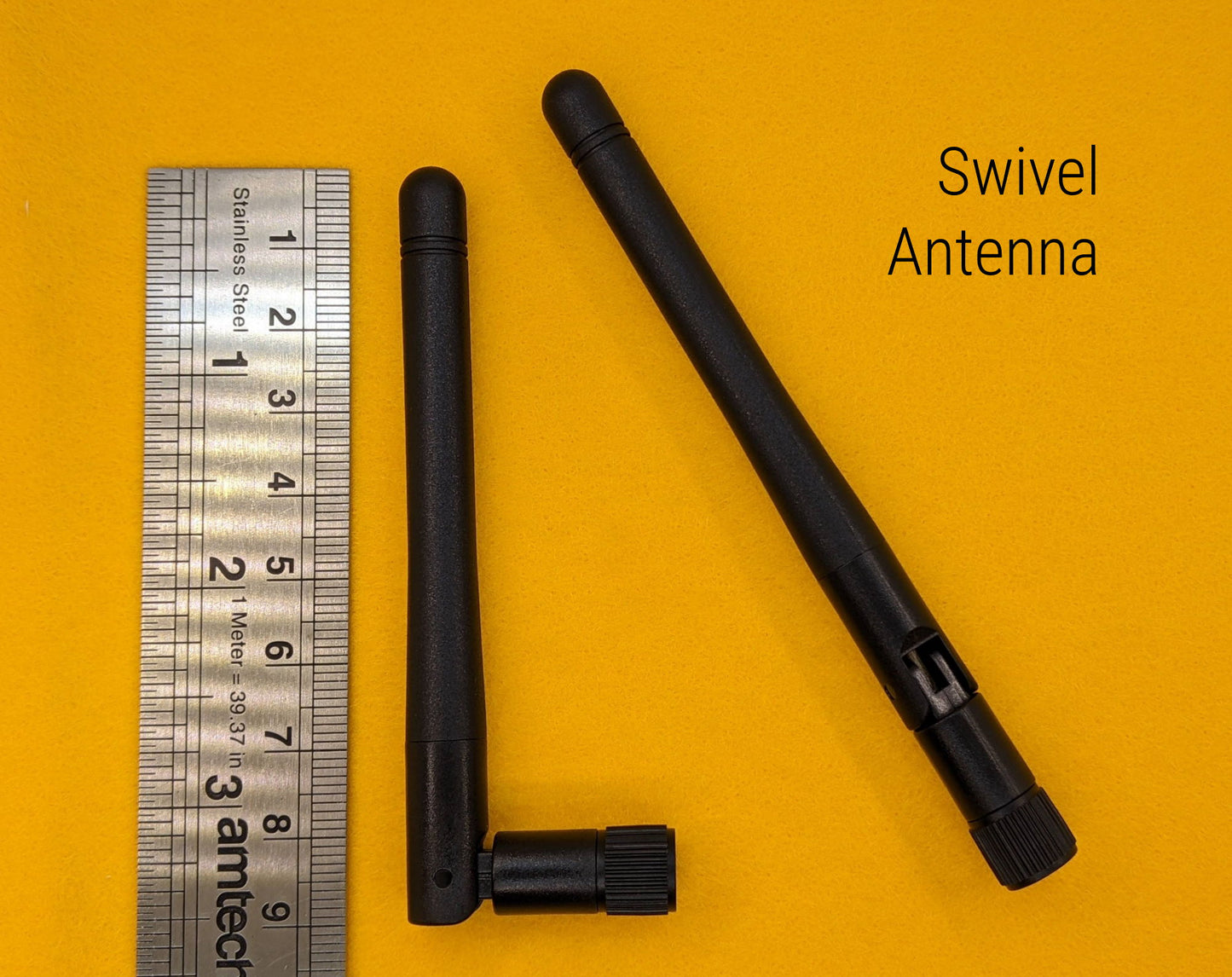

- SMA antenna port for an external antenna of your choice
- General purpose LED
Think of it as an upgrade to the ubiquitous CC2531 USB Sticks commonly used for Zigbee tinkering. CC2652 has a much beefier processor, more memory and a sane free compiler that should enable easier development compared to the old 8051 based CC2530/1 devices.
A portion of each sale will be donated to @Koenkk to support his work on Zigbee2mqtt and the public firmware images used by zzh and many other projects.
What is included?

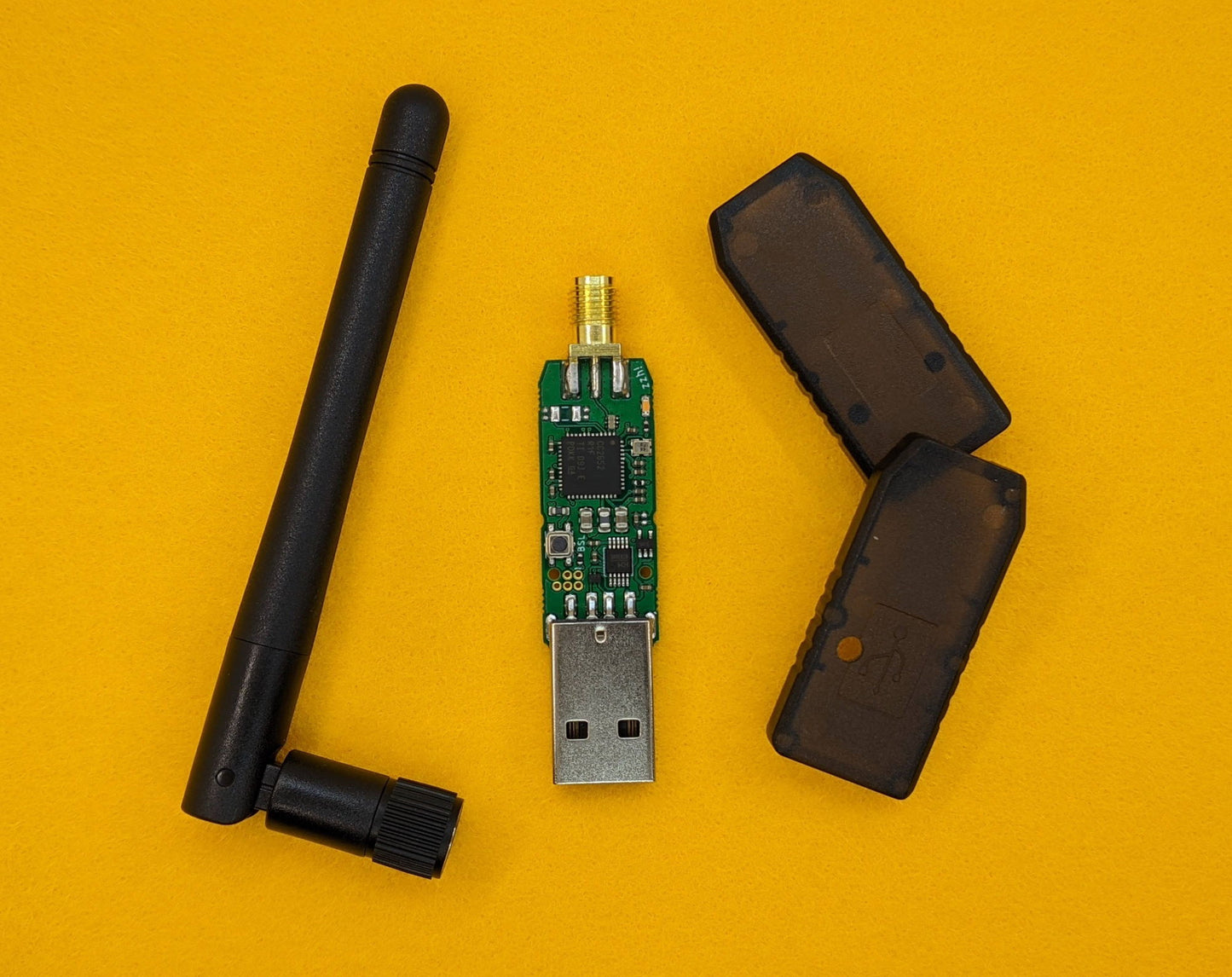

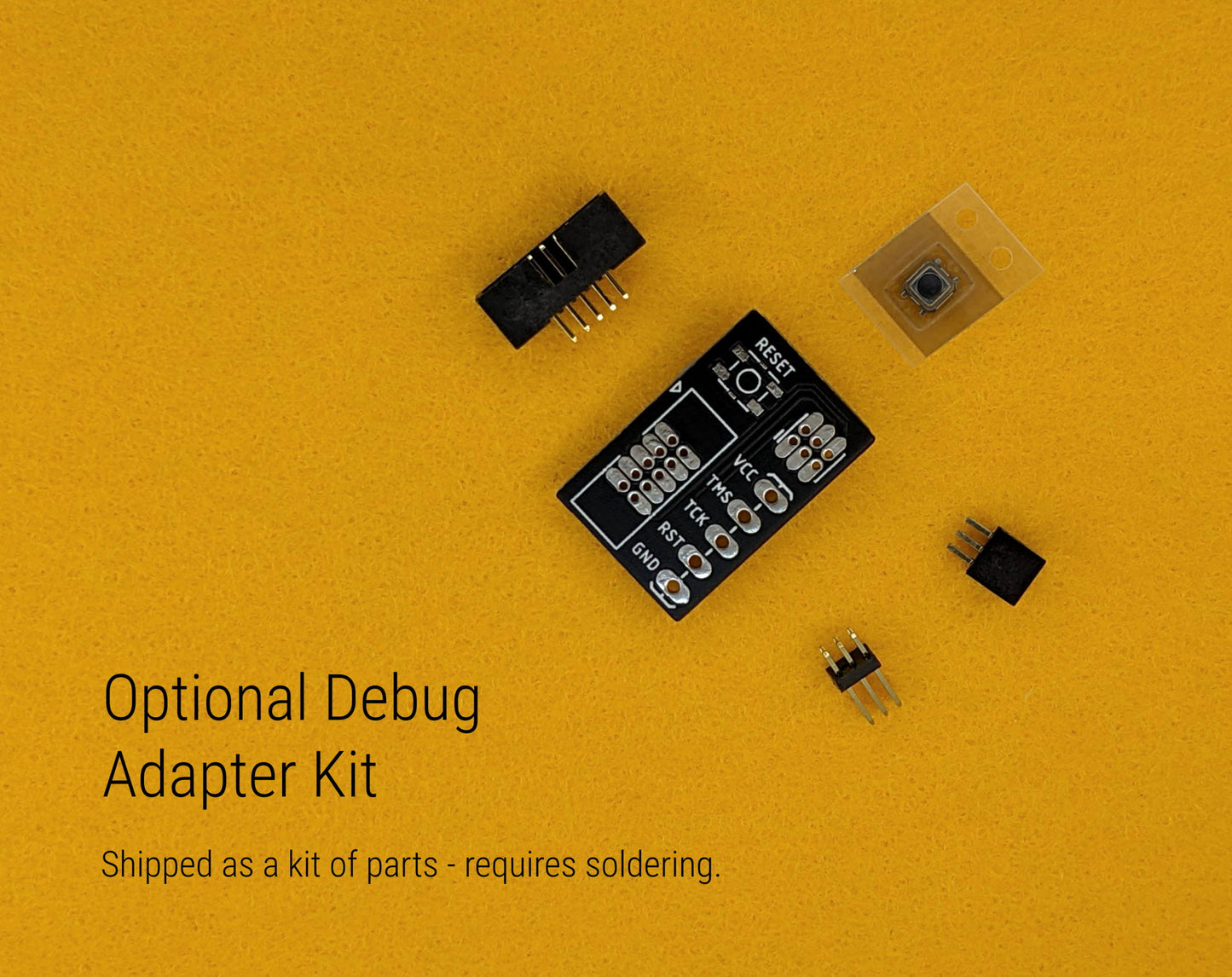

Each order contains a fully assembled and tested PCBA along with a plastic enclosure and an antenna. An optional debug adapter kit of parts (requires assembly) can also be purchased. Please refer to the listing photos.
Important Note
Please keep in mind that zzh is a general purpose development board. It is shipped with a simple test program that just blinks the LED on and off (with no radio functionality) to verify that the MCU is running. You will need to program it before it does anything meaningful. Given the application dependent nature of this board, limited after-sales support can be provided (For example: we can help you program this board but can't fix your Zigbee network range issues or offer specific software support).
Documentation
For a comprehensive guide on getting started with your Electrolama radio stick, please visit our beginner-friendly Quick Start Guide. This short guide covers all the steps required to get you up and running with the common Home Automation software use case.
Frequently asked questions are answered on our FAQ page, along with troubleshooting suggestions for the most common issues. These pages are maintained and updated regularly.
Regulatory Notice
This kit is designed to allow Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and Software developers to write software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all required FCC (or any other local authority) equipment authorizations are first obtained. Operation is subject to the condition that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.
